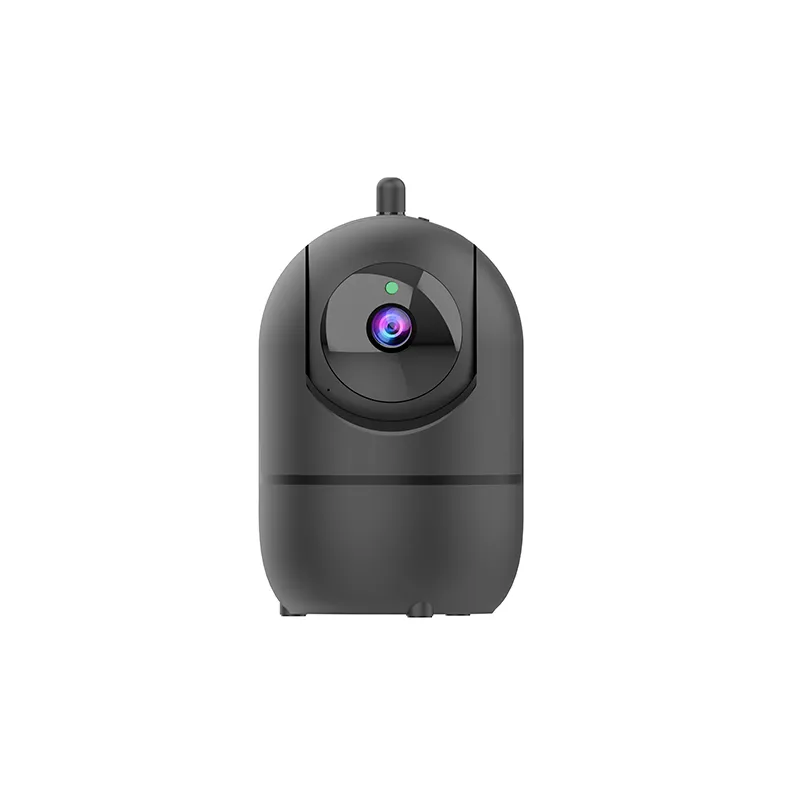

Effective pixel: | 1 MP |
Processor: | HC1703L |
Sensor: | 1 MP SC1346 |
Lens: | 3.6MM |
Connection mode: | wifi connection, AP hotspot direct connection |
Intercom: | two-way intercom |

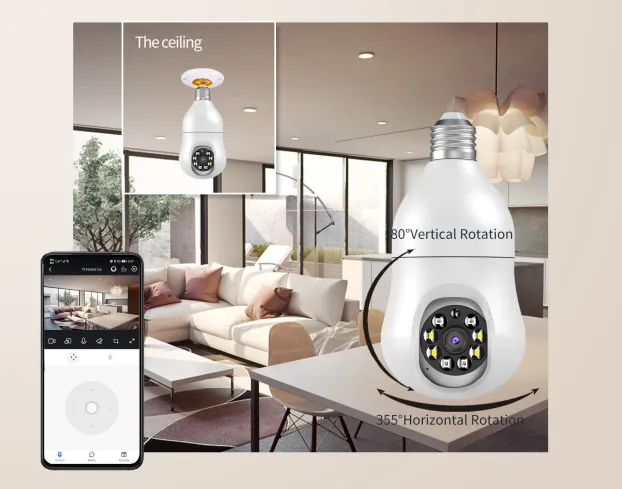

PTZ angle: | horizontal 355° vertical 90° |
APP: | iCam365/YCC365 |

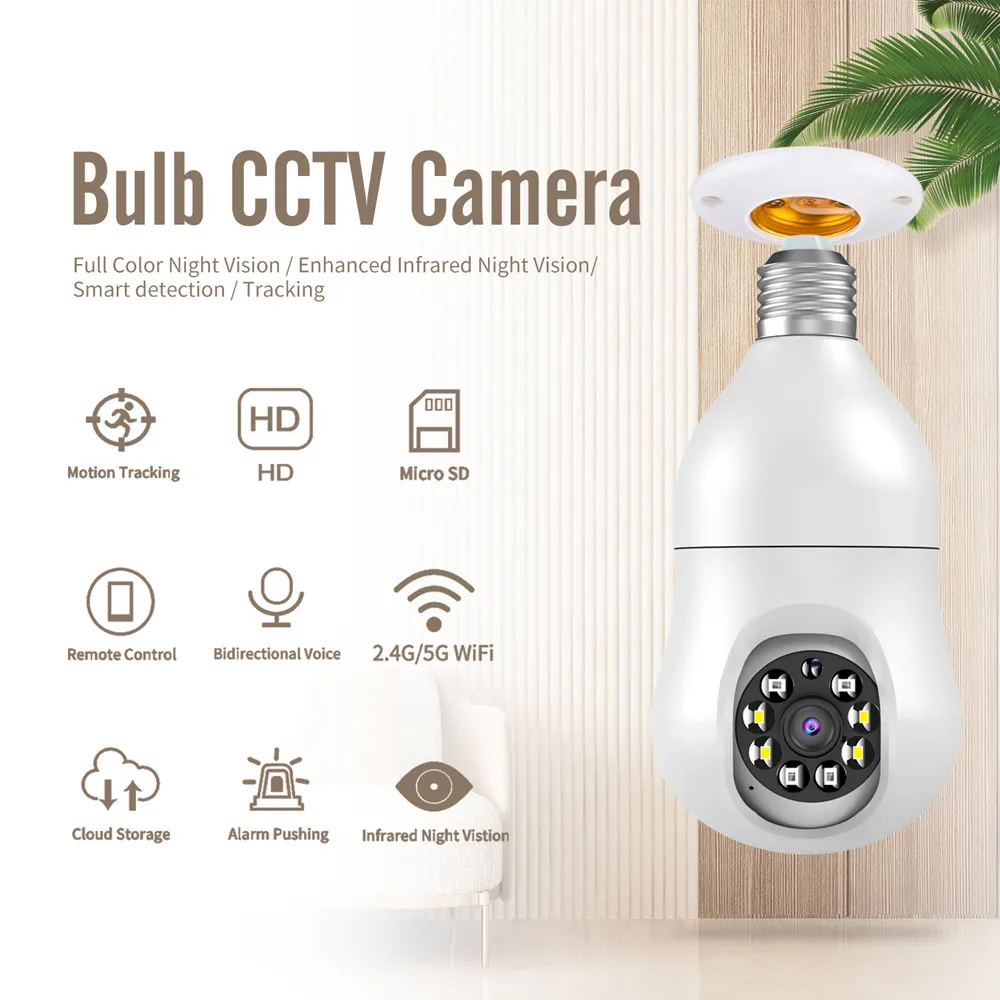

1、Intelligent detection: It can Intelligent recognition, track the movement trajectory of objects, proactively issue warnings and push alarm information to mobile phones.
2、Infrared night vision: High-performance infrared spotlights combined with high photosensitivity image sensors provide continuous protection day and night.
3、Remote control: Directly connected via WiFi/AP hotspot, built-in microphone and speaker, enabling remote two-way voice intercom and real-time monitoring via mobile phone.
4、Cloud storage: Via TF card + cloud dual storage, you can record without network and replay HD video at any time.
5、Smart dual-band: Using dual-band Wi-Fi transmission technology, automatic recognition to reduce interference, the network is faster and more compatible.
Basic Parameters | |
Model Number: | ik-112 |
Processor: | HC1703L |
Sensor: | 1 MP SC1346 |
Lens: | 3.6MM |
Connection: | wifi connection, AP hotspot direct connection |
Intercom: | Two-way intercom |
PTZ angle: | Horizontal 355° Vertical 90° |
APP: | iCam365/YCC365 |
Optics | |
Video coding: | H.264 |
Antenna mode: | Built-in antenna (2.45G dual-band antenna) |
Day and night switch: | Built-in IR-CUT double filter |
Infrared night vision: | 6 infrared lights |
TF compatible: | Support 8-128GB TF card, APP display capacity percentage |
Feature: | APP push, machine horn alarm, motion detection, video recording |
Night vision distance: | 5-10 meters |
Other Attributes | |
Warranty: | 1 Year |
Place of Origin: | Guangdong China |
Brand Name: | IK |
Certification: | CE, ROHS, FCC |
OEM/ODM: | Support Custom |
Power source: | DC 5V1A micro usb port |
Power dissipation: | Less than 2W (without infrared light and PTZ and loudspeaker) |
N/W: | 9.4KG |
G/W: | 13.5KG |
ID, MD, PCB, UI, hardware configuration, software functionality, etc.
ODM/OEM, sample processing, material processing,
SMT processing, and other subcontracting services.
