| Effective pixel: | 2880*1620 |
| Processor: | Allwinner V851SE |
| Sensor: | 5 MP GC5603 |
| Lens head: | F2.0 3.6MM |
| Connection mode: | Qr code, sound wave, hot spot distribution network |
| Intercom: | two-way intercom |

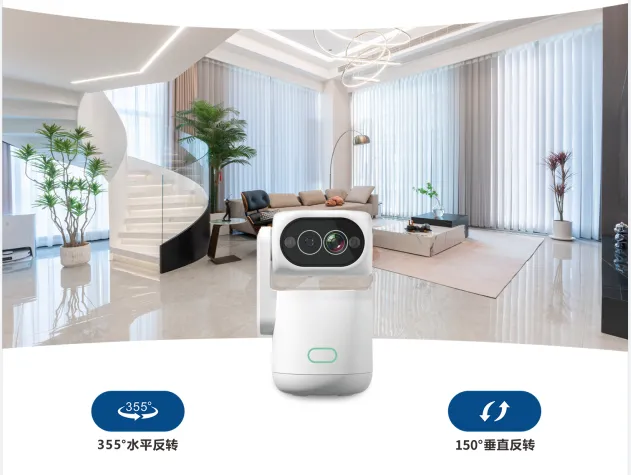

| PTZ angle: | horizontal 355° Vertical 150° |
| APP: | AIDOVID |

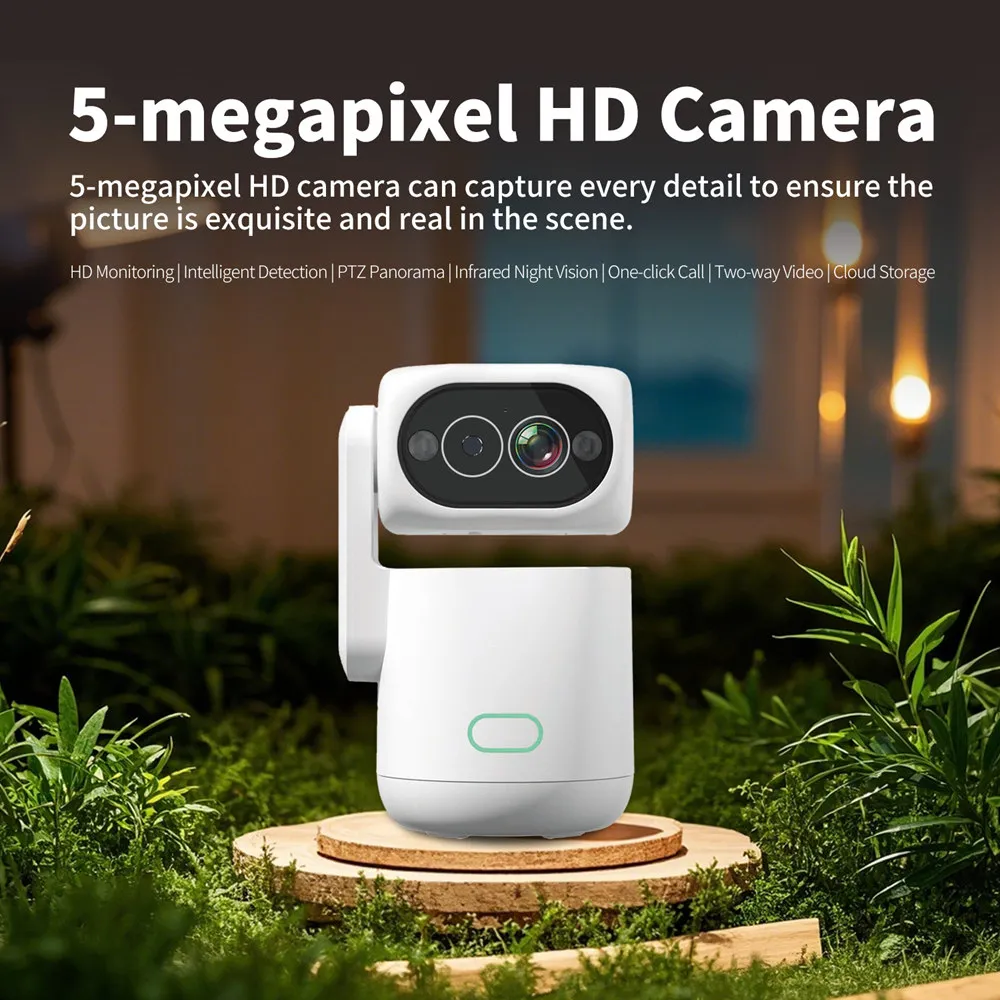

1、HD monitoring: The camera uses a 4-megapixel HD lens can capture every detail to ensure the picture is exquisite and real in the scene.
2、Intelligent detection: It can intelligently identify abnormal intruders, track the movement trajectory of objects, proactively issue warnings and push alarm information to mobile phones.
3、Infrared night vision: High performance infrared spotlight with high photosensitive image sensor can automatic switch, resulting in a larger photosensitive area and delicate images at night.

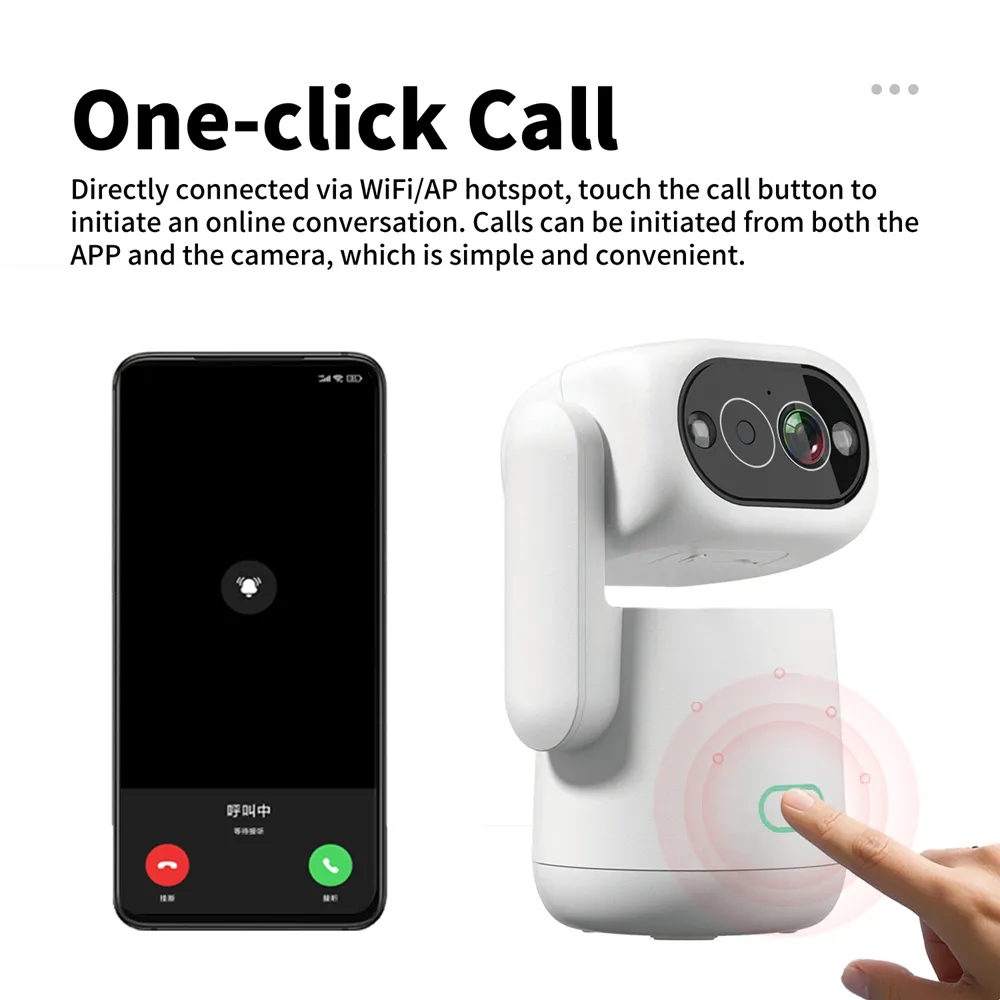

4、One-click call: Directly connected via WiFi/AP hotspot, touch the call button to initiate an online conversation. Calls can be initiated from both the APP and the camera, which is simple and convenient.
5、Cloud storage: Via TF card + cloud dual storage, you can record without network and replay HD video at any time.

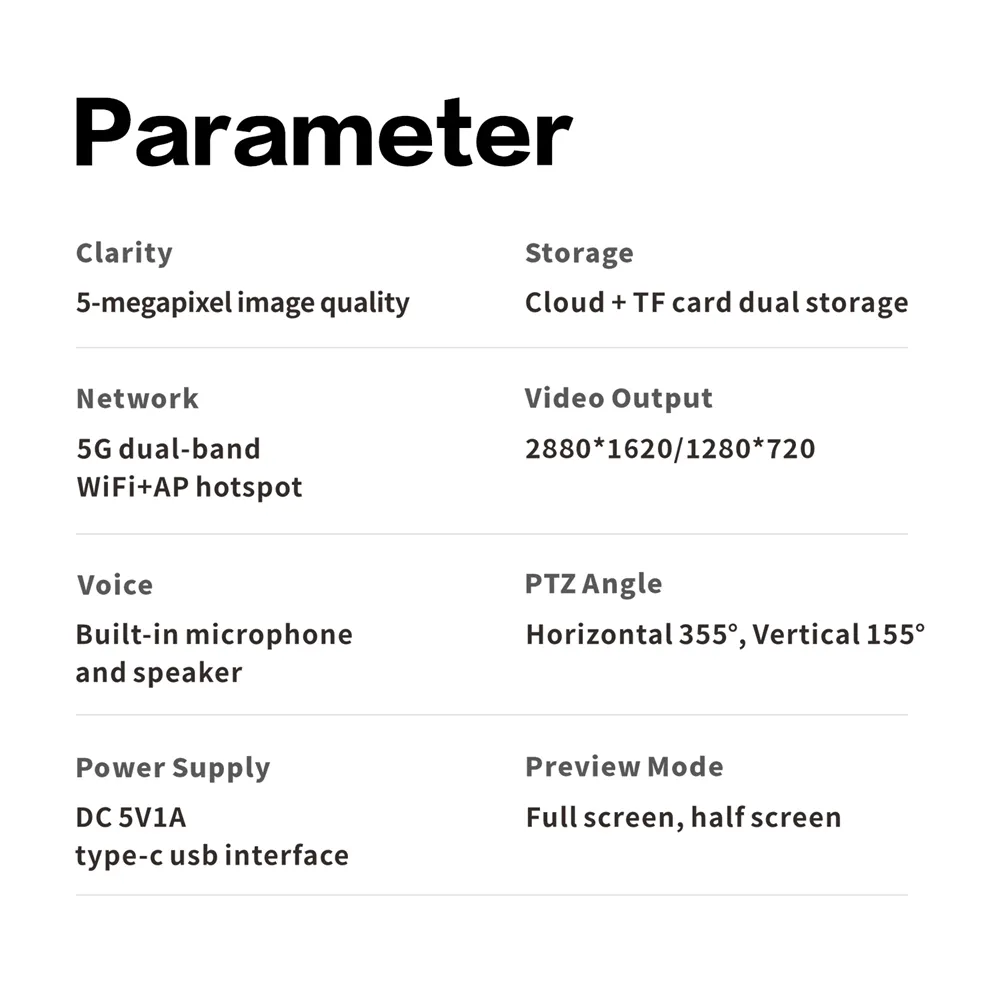

| Basic Parameters | |
| Model Number: | Z21 |
| Processor: | Allwinner V851SE |
| Sensor: | 5 MP GC5603 |
| Lens: | F2.0 3.6MM |
| Connection: | Qr code, sound wave, hot spot distribution network |
| Intercom: | Two-way intercom |
| PTZ angle: | Horizontal 355° Vertical 150° |
| Effective pixel: | 2880*1620 |
| Optics | |
| Video coding: | H.264/H.265 |
| Antenna mode: | Built-in antenna (2.45G dual-band antenna) |
| Day and night switch: | Built-in IR-CUT double filter |
| Infrared night vision: | 4 infrared lights |
| TF compatible: | Support 8-128GB TF card, APP display capacity percentage |
| Feature: | APP push, machine horn alarm, motion detection, video recording |
| Night vision distance: | 5-10 meters |
| Other Attributes | |
| Warranty: | 1 Year |
| Place of Origin: | Guangdong China |
| Brand Name: | IK |
| Certification: | CE, ROHS, FCC |
| OEM/ODM: | Support Custom |
| Power source: | DC 5V1A type-c usb port |
| Power dissipation: | Less than 2W (without infrared light and PTZ and loudspeaker) |
