Effective pixels:4 MP
Processor:V851S3
Sensor:1/2.8 stack CMOS
Lens head:F1.0MM large aperture
Connection:WiFi connection, wired connection, Bluetooth connection
Intercom:Two-way intercom
Head Angle:Horizontal 355° vertical 90°
APP:AIDOVID


Product Description
Shenzhen IKworld Technology Co., Ltd.

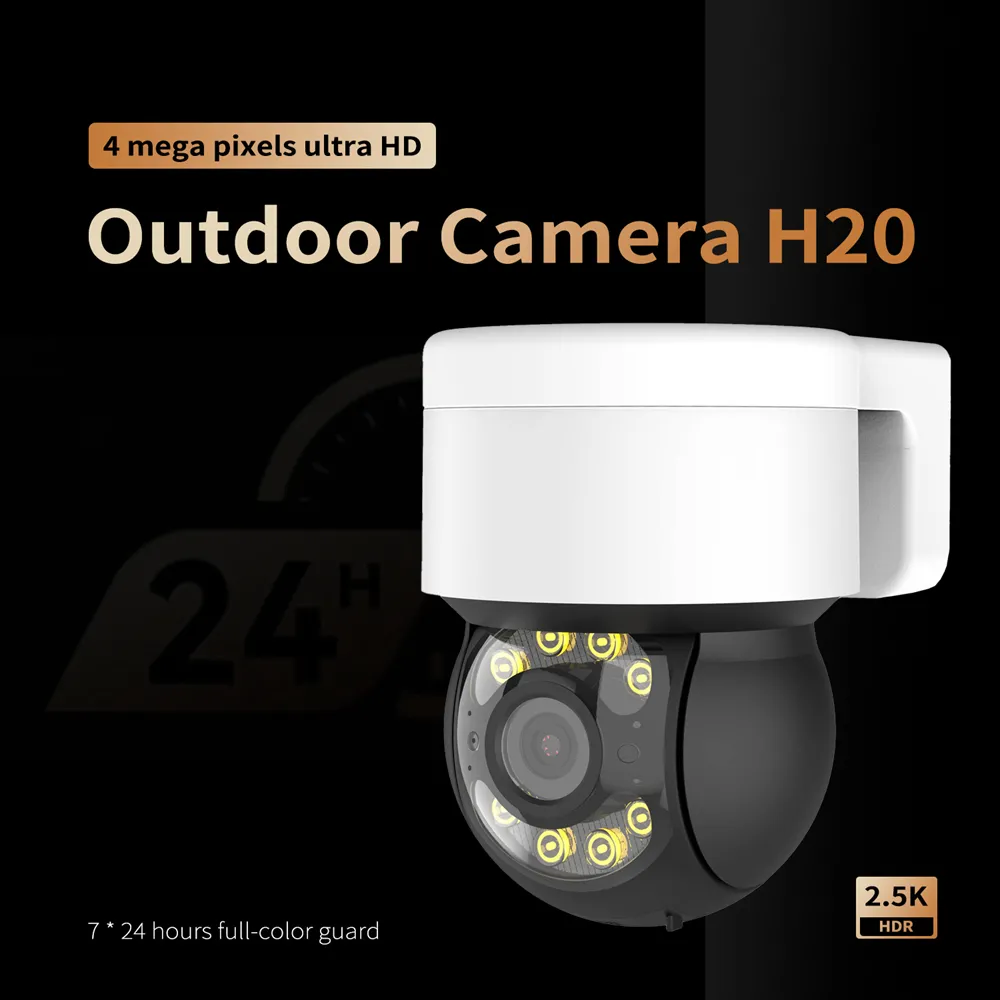

1、HD vision: The camera that with F1.0 large aperture design, high resolution sensor and image processing technology has 4-megapixel ultra HD to ensure that the picture is clear and delicate.

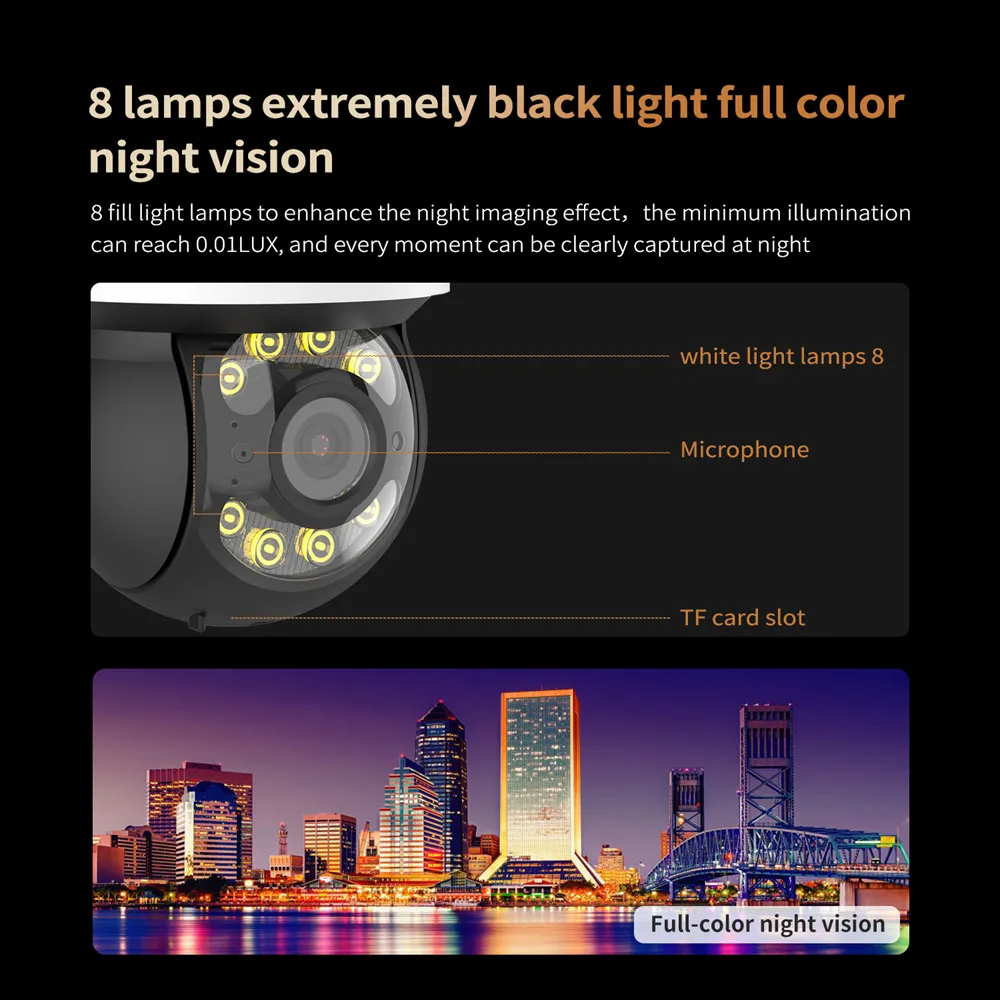

2、Full color night vision: Support extremely black light full color night vision function, 8 fill lights to enhance imaging effect in the night. The minimum illumination can reach 0.01LUX, so every moment can be clearly captured.

3、Two-way voice: It adopts the G.711A audio processing standard and is equipped with a built-in microphone and speaker. It can make real-time calls through your mobile phone and camera, making communication with your family more convenient.

4、Intelligent detection: It supports smart alarm functions such as APP push alarm, humanoid detection, motion detection and sound detection, which effectively improves safety performance and allows you to keep track of the safety status of your home at any time.

5、Cloud storage: Via TF card + cloud dual storage service ensure the data backup worry-free and data encryption technology ensures storage security. View history records anytime and anywhere.

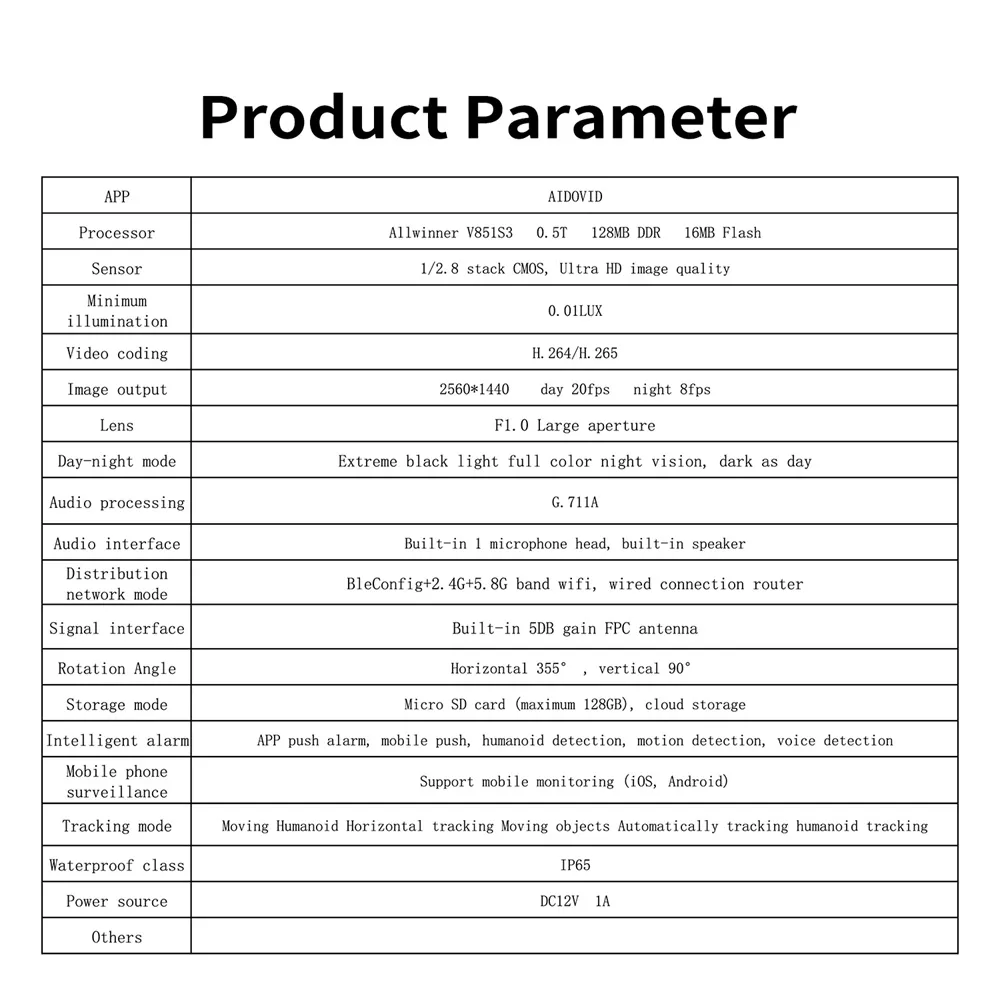

Parametric Diagram

Basic Parameters
Model Number:H20
Processor:V851S3
Effective pixels:4 MP
Sensor:1/2.8 stack CMOS
Lens head:F1.0MM large aperture
Connection:WiFi connection, wired connection, Bluetooth connection
Intercom:Two-way video
PTZ angle:Horizontal 355° Vertical 90°
APP:AIDOVID
Optics
Video coding:H.264/H.265
Network:BleConfig+2.4G+5.8G band wifi, wired connection router
Day and night mode:Extreme black light full color night vision
Signal interface:Built-in 5DB gain FPC antenna
Storage mode:Micro SD card (maximum 128GB), cloud storage
Feature:APP push, machine horn alarm, motion detection, video recording
Audio processing:G.711A
Other Attributes
Warranty:1 Year
Place of Origin:Guangdong, China
Brand Name:IK
Certification:CE, ROHS, FCC
OEM/ODM:Support Custom LOGO
Power source:DC 12V 1A
Waterproof class:IP65


Customization Scope
H20
H20

ID, MD, PCB, UI, hardware configuration, software functionality, etc.

ODM/OEM, sample processing, material processing,

SMT processing, and other subcontracting services.
